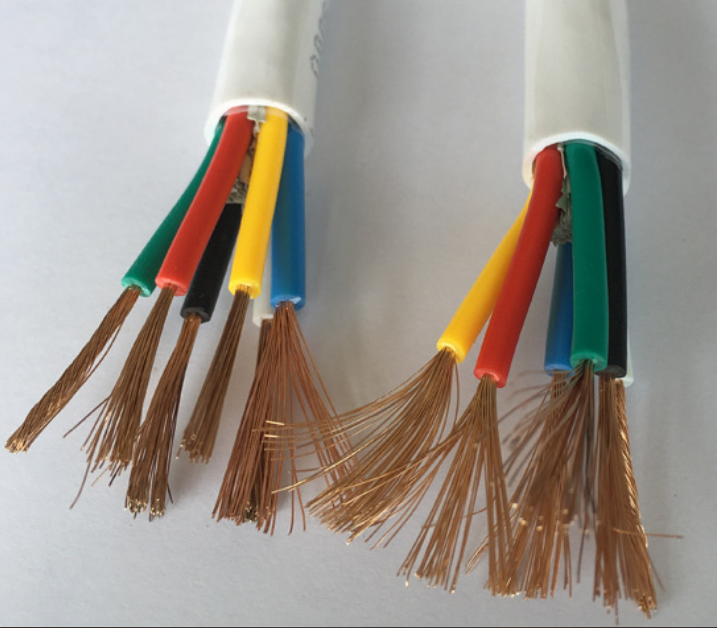

銅芯聚安裝軟電纜AVVR 300/300V
產品應用
銅芯聚安裝軟電纜AVVR 300/300V適用于樓宇對講系統、安防監控報警系統、電器內部裝線控制用線、電腦、儀表和電子設備及自動化裝置等信號控制用線。
產品結構
執行標準：JB/T8734. 4-2016
導 體：多股精細銅絲，符合標準JB/T8734. 3-2016表7規定
規格范圍：2~30芯：0. 08~0. 4mm2
絕緣材料：聚氯乙烯
填充(可選)：網狀聚丙烯填充或棉紗填充
護套材料：聚氯乙烯
護套顏色：黑色以及其他顏色
芯線顏色
兩 芯：任意色
三 芯：黃/綠、藍、棕或棕、黑、灰
四 芯：黃/綠、棕、黑、灰或藍、棕、黑、灰
五 芯：黃/綠、藍、棕、黑、灰或藍、棕、黑、灰、黑
五芯以上：彩色芯線或數字號
技術參數
額定電壓：300/ 300V
測試電壓：1500V
額定溫度：-15°C~+70°
額定電壓：300/ 300V
測試電壓：1500V
額定溫度：-15°C~+70C
最小彎曲半徑:
固定安裝：6X電纜外徑
移動安裝：15X電纜外徑.
產品特性
機械性能一般
良好的剝離性
產品參數
| 芯數×截面積(n*mm2) | 絕緣厚度 （mm） | 護套厚度 | 電纜近似外徑 | 70℃絕緣電阻值 .min （MΩ*km） | 20℃導體電阻值.max（Ω/km） | ||
| 銅芯 | 鍍錫銅芯 | ||||||
| 2*0.2 | 0.4 | 0.6 | 4.4 | 0.013 | 92.3 | 95.0 | |
| 3*0.2 | 0.4 | 0.6 | 4.7 | 0.013 | 92.3 | 95.0 | |
| 4*0.2 | 0.4 | 0.6 | 5.0 | 0.013 | 92.3 | 95.0 | |
| 5*0.2 | 0.4 | 0.6 | 5.4 | 0.013 | 92.3 | 95.0 | |
| 6*0.2 | 0.4 | 0.6 | 5.9 | 0.013 | 92.3 | 95.0 | |
| 7*0.2 | 0.4 | 0.6 | 5.9 | 0.013 | 92.3 | 95.0 | |
| 8*0.2 | 0.4 | 0.6 | 6.3 | 0.013 | 92.3 | 95.0 | |
| 9*0.2 | 0.4 | 0.6 | 6.9 | 0.013 | 92.3 | 95.0 | |
| 10*0.2 | 0.4 | 0.6 | 7.3 | 0.013 | 92.3 | 95.0 | |
| 12*0.2 | 0.4 | 0.6 | 7.5 | 0.013 | 92.3 | 95.0 | |
| 14*0.2 | 0.4 | 0.8 | 8.3 | 0.013 | 92.3 | 95.0 | |
| 16*0.2 | 0.4 | 0.8 | 8.7 | 0.013 | 92.3 | 95.0 | |
| 18*0.2 | 0.4 | 0.8 | 9.1 | 0.013 | 92.3 | 95.0 | |
| 20*0.2 | 0.4 | 0.8 | 9.3 | 0.013 | 92.3 | 95.0 | |
| 30*0.2 | 0.4 | 1.0 | 11.5 | 0.013 | 92.3 | 95.0 | |
| 2*0.3 | 0.5 | 0.6 | 5.0 | 0.014 | 69.2 | 71.2 | |
| 3*0.3 | 0.5 | 0.6 | 5.3 | 0.014 | 69.2 | 71.2 | |
| 4*0.3 | 0.5 | 0.6 | 5.7 | 0.014 | 69.2 | 71.2 | |
| 5*0.3 | 0.5 | 0.6 | 6.2 | 0.014 | 69.2 | 71.2 | |
| 6*0.3 | 0.5 | 0.6 | 6.7 | 0.014 | 69.2 | 71.2 | |
| 7*0.3 | 0.5 | 0.6 | 6.7 | 0.014 | 69.2 | 71.2 | |
| 8*0.3 | 0.5 | 0.6 | 7.2 | 0.014 | 69.2 | 71.2 | |
| 9*0.3 | 0.5 | 0.8 | 8.3 | 0.014 | 69.2 | 71.2 | |
| 10*0.3 | 0.5 | 0.8 | 8.8 | 0.014 | 69.2 | 71.2 | |
| 12*0.3 | 0.5 | 0.8 | 9.1 | 0.014 | 69.2 | 71.2 | |
| 14*0.3 | 0.5 | 0.8 | 9.5 | 0.014 | 69.2 | 71.2 | |
| 16*0.3 | 0.5 | 0.8 | 10.0 | 0.014 | 69.2 | 71.2 | |
| 18*0.3 | 0.5 | 0.8 | 10.6 | 0.014 | 69.2 | 71.2 | |
| 20*0.3 | 0.5 | 0.8 | 10.8 | 0.014 | 69.2 | 71.2 | |
| 30*0.3 | 0.5 | 1.0 | 13.4 | 0.014 | 69.2 | 71.2 | |
| 2*0.4 | 0.5 | 0.6 | 5.5 | 0.012 | 48.2 | 49.6 | |
| 3*0.4 | 0.5 | 0.6 | 5.6 | 0.012 | 48.2 | 49.6 | |
| 4*0.4 | 0.5 | 0.6 | 6.0 | 0.012 | 48.2 | 49.6 | |
| 5*0.4 | 0.5 | 0.6 | 6.5 | 0.012 | 48.2 | 49.6 | |
| 6*0.4 | 0.5 | 0.6 | 7.1 | 0.012 | 48.2 | 49.6 | |
| 7*0.4 | 0.5 | 0.6 | 7.1 | 0.012 | 48.2 | 49.6 | |
| 8*0.4 | 0.5 | 0.6 | 7.6 | 0.012 | 48.2 | 49.6 | |
| 9*0.4 | 0.5 | 0.8 | 8.8 | 0.012 | 48.2 | 49.6 | |
| 10*0.4 | 0.5 | 0.8 | 9.3 | 0.012 | 48.2 | 49.6 | |
| 12*0.4 | 0.5 | 0.8 | 9.6 | 0.012 | 48.2 | 49.6 | |
| 14*0.4 | 0.5 | 0.8 | 10.1 | 0.012 | 48.2 | 49.6 | |
| 16*0.4 | 0.5 | 0.8 | 10.6 | 0.012 | 48.2 | 49.6 | |
| 20*0.4 | 0.5 | 0.8 | 11.4 | 0.012 | 48.2 | 49.6 | |
